PCD 钻孔铣削工具
PCD Drill Slot Milling TOOL
钻孔铣削深度0.5*D 中心出水可定制
Drilling/milling depth up to 0.5*D Coolant channels ordered

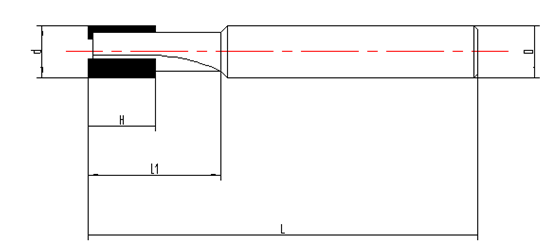

DIAGRAM:
SPECIFICATIONS:
D 柄径 mm | d 刃径 mm | L 全长 mm | L1 切深 mm | H 刃长 mm | Z 刃数 mm |
| 6 | 6 | 60 | 20 | 4 | 2 |
| 8 | 8 | 72 | 32 | 4 | 2 |
| 10 | 10 | 72 | 32 | 5 | 2 |
| 12 | 12 | 97 | 47 | 6 | 2 |
| 14 | 14 | 97 | 47 | 7 | 2 |
| 16 | 16 | 97 | 47 | 8 | 2 |
| 18 | 18 | 97 | 47 | 9 | 2 |
| 20 | 20 | 97 | 47 | 10 | 2 |
