PCD 钻孔铣削工具
PCD Drill Slot Milling TOOL
钻孔铣削深度1*D 中心出水可定制
Drilling/milling depth up to 1*D Coolant channels ordered

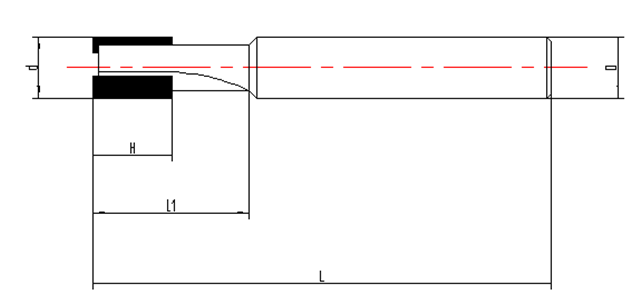

DIAGRAM:
SPECIFICATIONS:
D 柄径 mm | d 刃径 mm | L 全长 mm | L1 切深 mm | H 刃长 mm | Z 刃数 mm |
| 6 | 6 | 60 | 20 | 8 | 2 |
| 8 | 8 | 72 | 32 | 11 | 2 |
| 10 | 10 | 72 | 32 | 13 | 2 |
| 12 | 12 | 97 | 47 | 15 | 2 |
| 14 | 14 | 97 | 47 | 16 | 2 |
| 16 | 16 | 97 | 47 | 18 | 2 |
| 18 | 18 | 97 | 47 | 20 | 2 |
| 20 | 20 | 97 | 47 | 22 | 2 |
